Note: We have added 2 sets of screws of different lengths to this Vent Rib Mount Adapter to fit for more models. The additional screws are only limited to new orders shipped from China currently.
- Fit For: IZH-27,MR-153/155, MP-233, TOZ-120, MTs21-12, TOZ-84 carbine, NOT fit for TOZ-34.

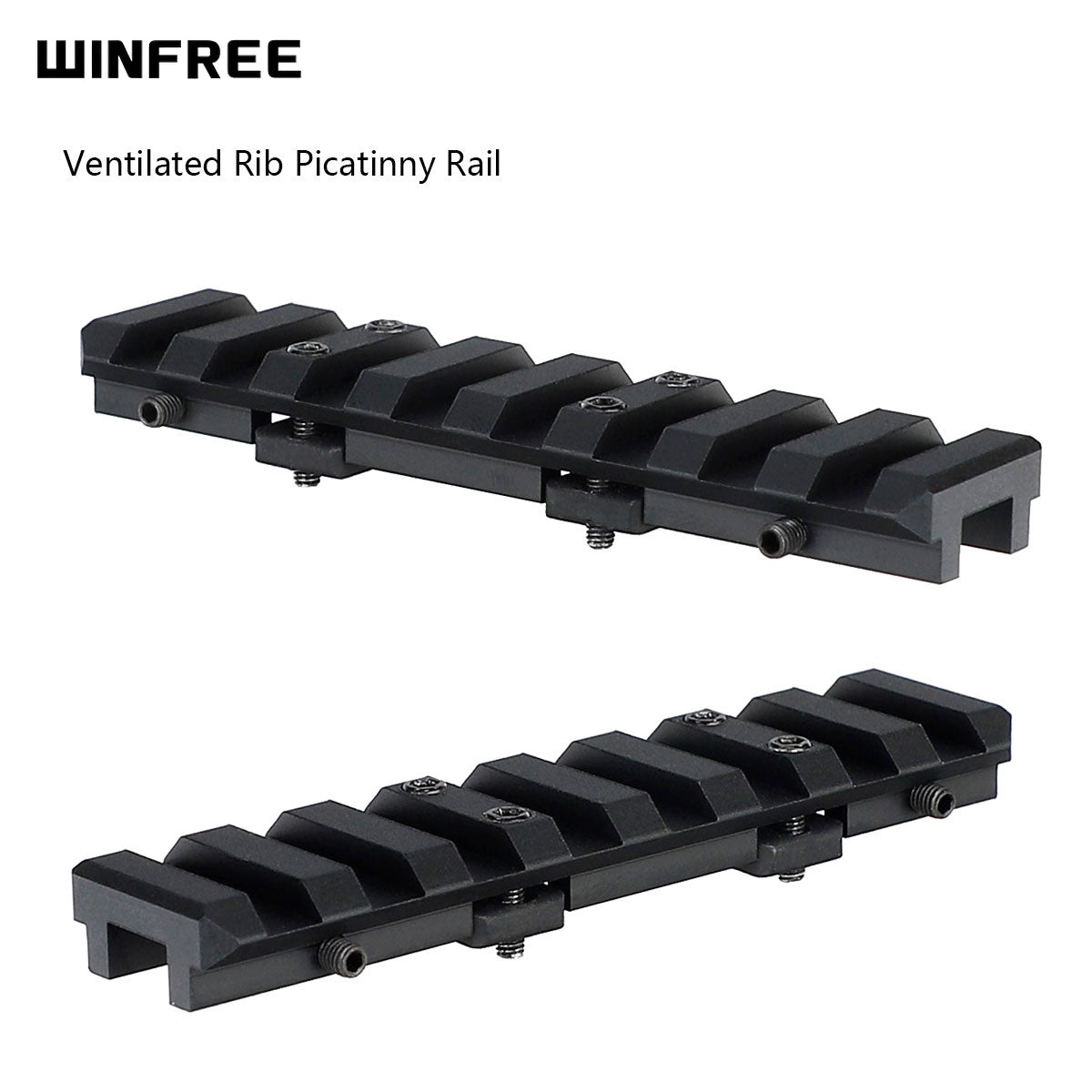

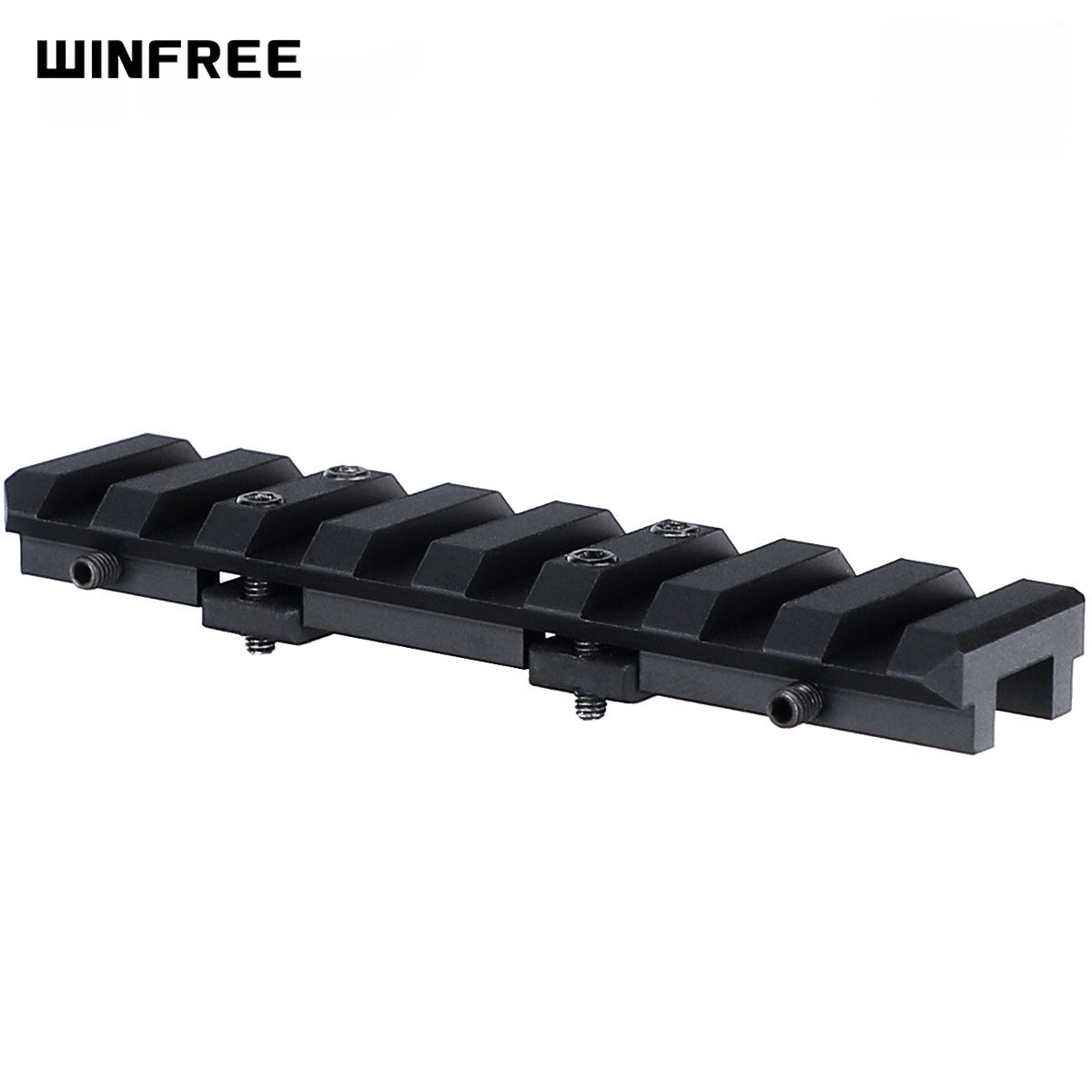

- This Ventilated Rib Picatinny Rail is designed to work with Shotgun Ventilated Rib (no wider than 7.9mm/0.31 inch).
- Do not over tighten the screws, stop tightening when resistance is felt.
- Type: Ventilated Rib Mount
- For: Shotgun
- Rail: Picatinny Rail

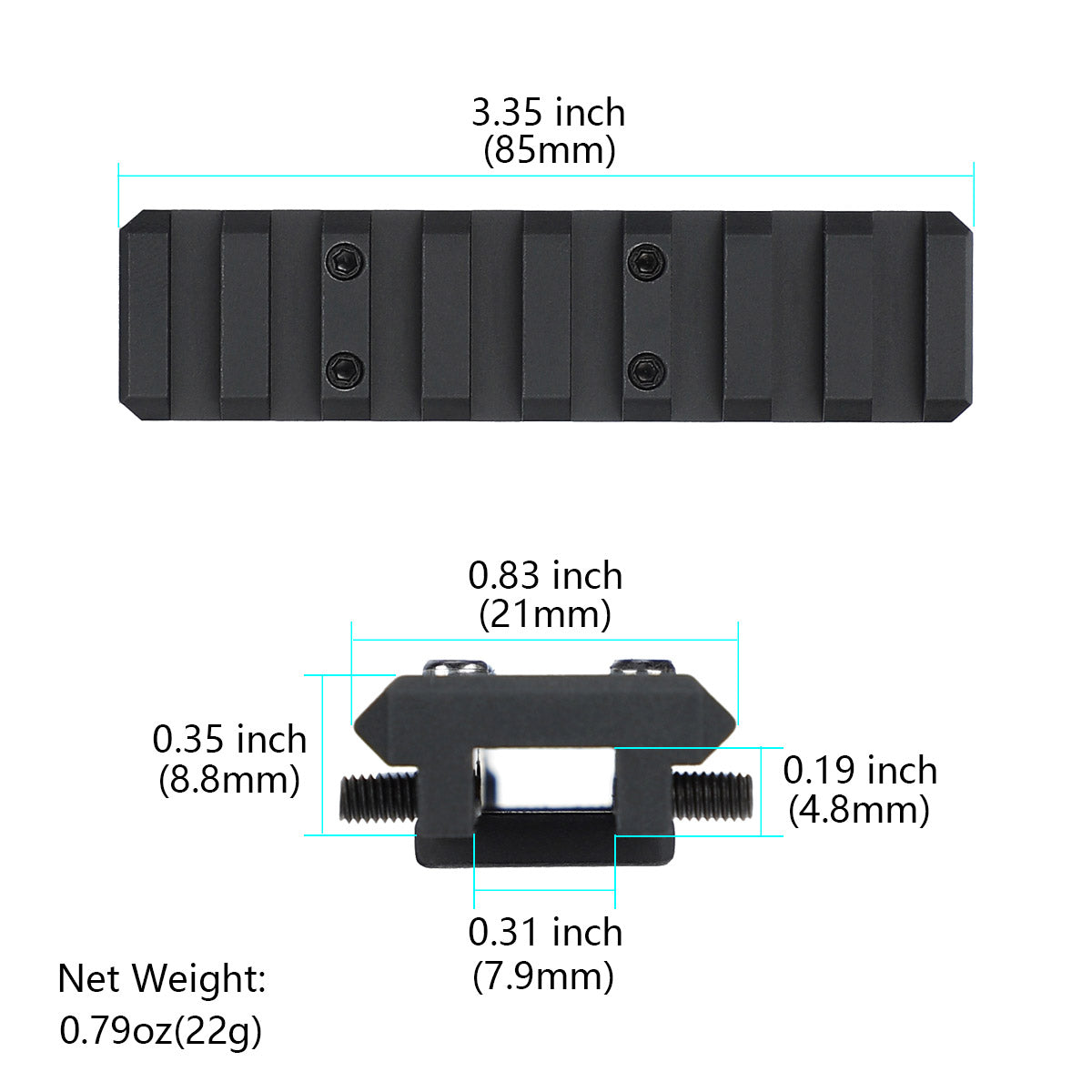

- Length: 3.35 inches / 85mm
- Wide: Ribs up to 7.9mm/0.31 inch wide.
- Net Weighs : 0.79oz / 22 g
- Screw length: 0.365"
- Material: High quality aluminum

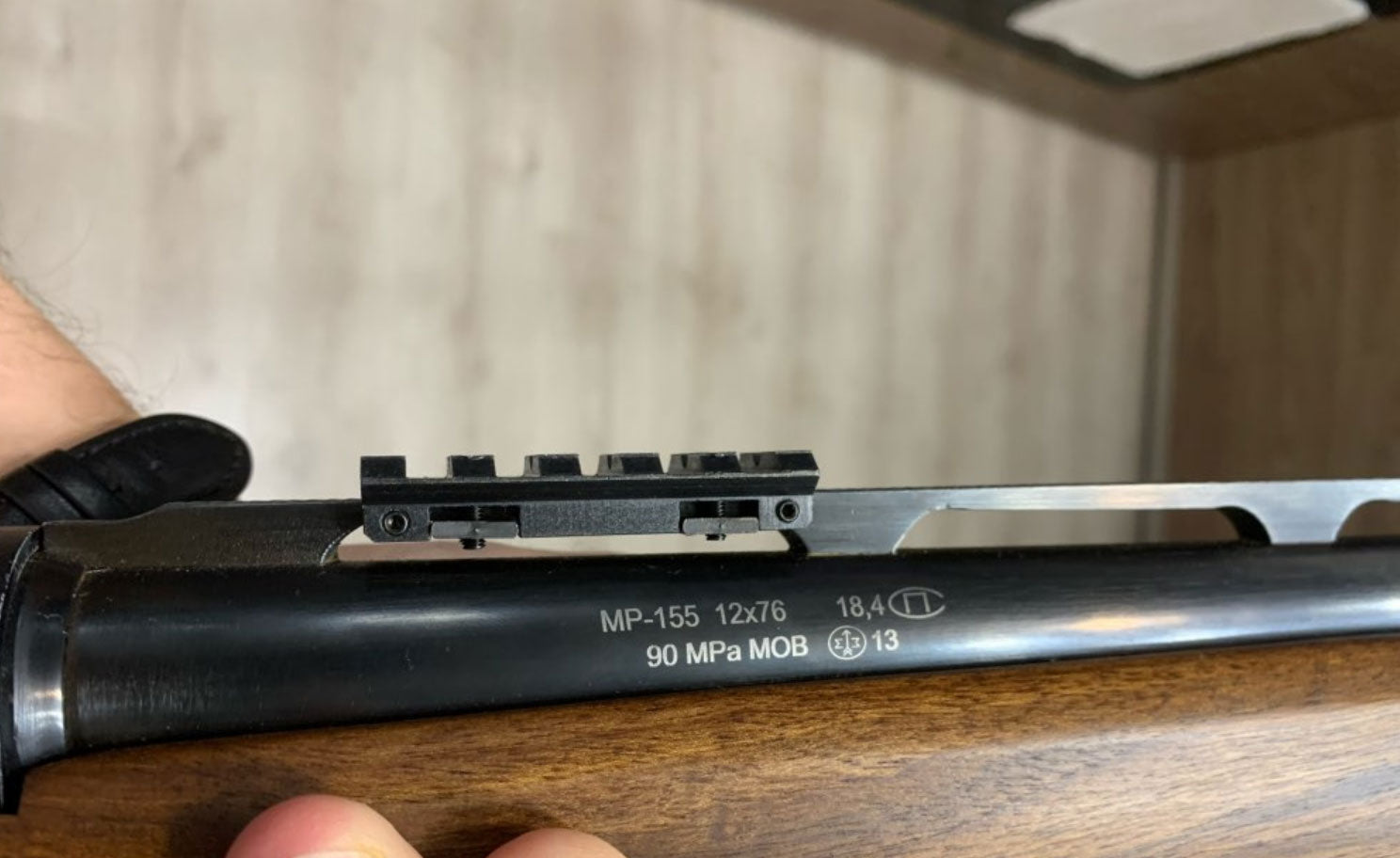

HOW TO INSTALL THE VENT RIB MOUNT ADAPTER?
Installing the Vent Rib Mount Adapter does not require any firearm building, you can take it out of the box and install it on your gun in minutes. These rails attach as low as possible on the ribs for a slim profile that provides minimal interference with your weapon build.

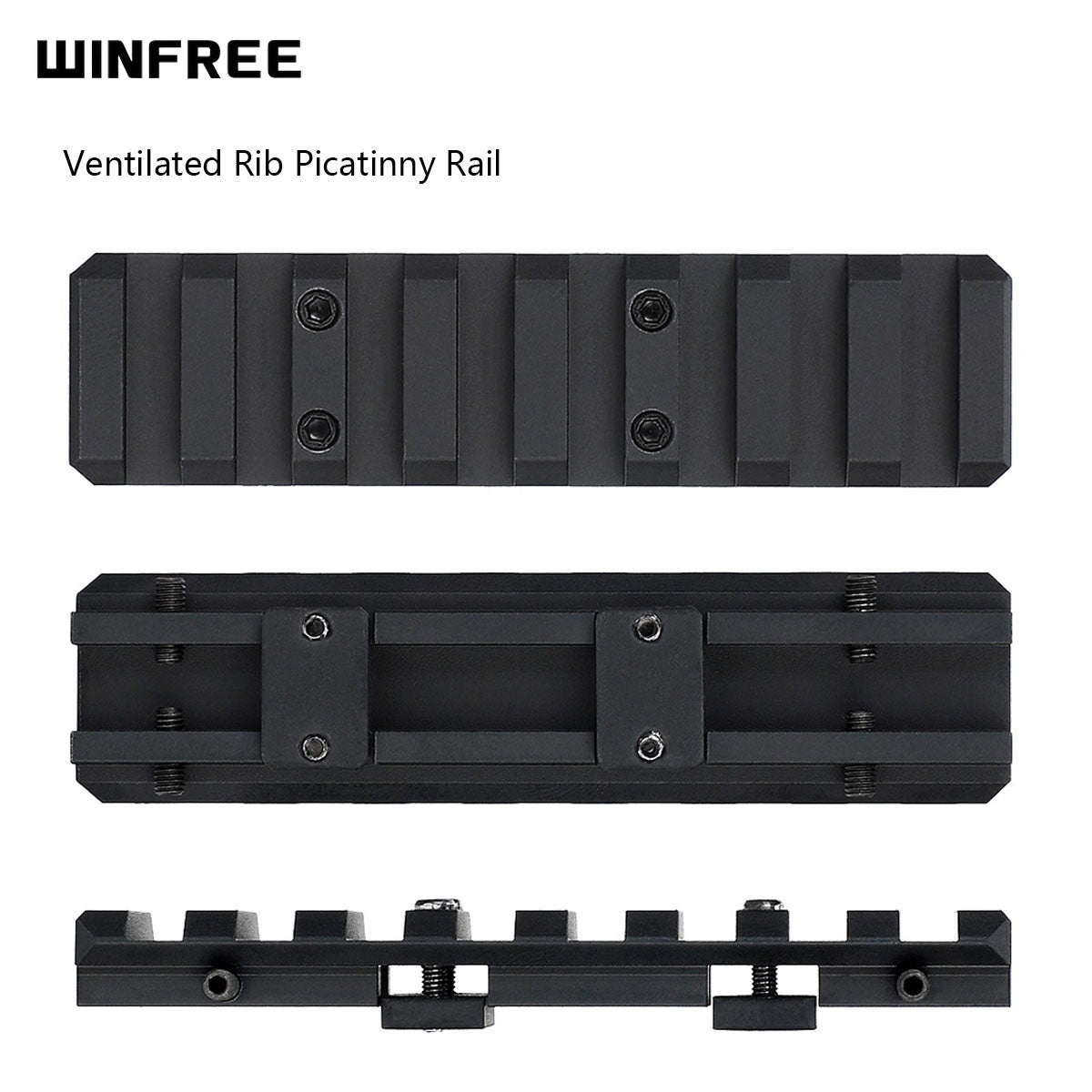

The principle of installation consists in transverse blades that pass through the holes in the ventilated plate and are attracted by two screws. On the sides of the transition bar has 2 pins, providing additional fixation.
*** Please Use thread locker on screws, do not overtighten screws, and stop tightening when resistance is felt.
